Wavetable synthesis explained through the Roland n/vision
The n/vision, the first wavetable synth in Roland’s Boutique range, works as a map of wavetable synthesis: position, two layers, wave shaper, filter.
On October 20, 2026, Roland introduced the n/vision, the first wavetable synthesizer in its compact Roland Boutique range, and the first model in the range designed from scratch rather than derived from a classic. The official press release pitches it at EDM, ambient and film and video music producers. It is a good moment to look at what a wavetable synth actually does, control by control, using the n/vision’s panel as the map.
What a wavetable is
A classic oscillator produces a fixed waveform: saw, square, triangle. A wavetable is an ordered set of single-cycle waveforms, from a handful to several dozen, arranged from dark to bright or from one timbre to another. The position parameter picks which part of the table is played. The sound therefore changes not by filtering, but by moving from one waveform to the next.
The idea dates back to Wolfgang Palm’s PPG Wave synths of the early 1980s. It became central to software synths, then to hardware, because it produces moving sounds without relying on a filter.
The key move: modulating position
A static wavetable sounds like an ordinary oscillator. Movement comes from modulating the position:
- with an envelope: the note starts on a rich waveform and settles on a softer one, a bit like a closing filter but with a different character;
- with an LFO: a cyclic sweep, the basis of pads that “breathe”;
- with randomness: each note starts at a different point in the table, which avoids mechanical repetition.
How an envelope works (attack, decay, sustain, release) is covered in our article on the ADSR envelope.

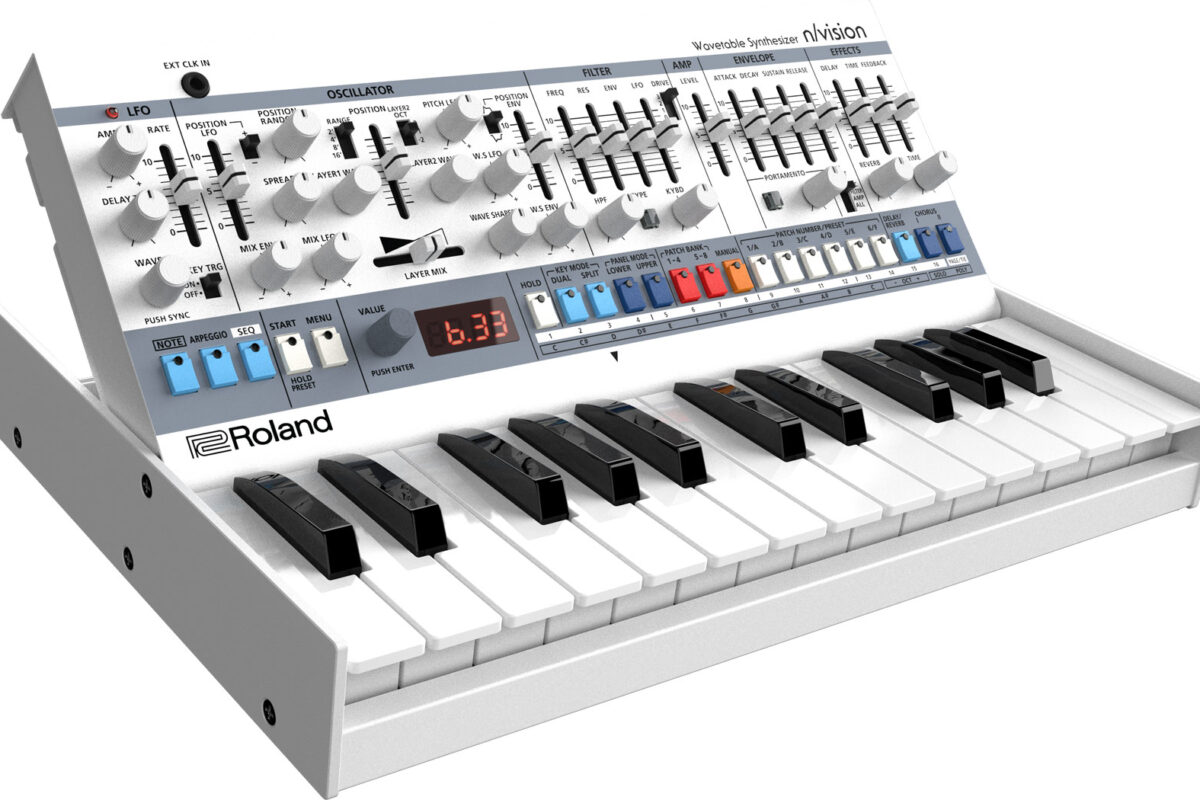

How the n/vision lays it out
Each n/vision voice reads two wavetables at once (LAYER1 and LAYER2). A LAYER MIX slider balances the two layers, the second one can be shifted by an octave, and a SPREAD control widens the stereo image. The signal then goes through a wave shaper, then the filter and amplifier.
The wave shaper, a second source of harmonics
A wave shaper applies a non-linear transfer curve to the signal: it folds or squashes the waveform and adds harmonics that were not there. Where the table position picks a waveform, the shaper bends it. On the n/vision it has its own amount control, LFO modulation and its own envelope, so the attack of a note can bite before it softens.
Control map
| n/vision control | Role in wavetable synthesis |
|---|---|
| POSITION, POSITION LFO, POSITION RANDOM, POSITION ENV | which waveform is read, and its three modulation sources |
| LAYER MIX, MIX ENV, MIX LFO | balance of the two layers, static or animated |
| WAVE SHAPER, W.S LFO, W.S ENV | amount of waveshaping and its modulation |
| FREQ, RES, TYPE, DRIVE, HPF | analog-modeling filter, several models, drive, high-pass |
| Step LFO, KEY TRG | stepped LFO, retriggered per note or free-running |
The rest of the instrument shares the platform of the JUPITER-08 announced the same day: up to 56 voices depending on engine load, two parts that can be layered or split, a 64-step sequencer with up to 8 notes per step, arpeggiator, 17 effect types including the JUNO chorus, separate delay and reverb, 240 patch memories. Connections: MIDI IN/OUT, clock input, stereo mini-jack output, USB-C audio and MIDI; power from 4 AA batteries or USB; 25-key K-25m mini keyboard included, built-in speaker, 1.7 kg.
Roland’s official walkthrough:
Who it is for, what it costs, what it competes with
Who it is for. Players after pads, basses and textures that evolve over time, who would rather use sliders than a screen. With one control per function, the n/vision is also a good way to learn wavetable synthesis by seeing what each move does. Same limit as the JUPITER-08: the 25 mini keys.
What it costs. Roland’s US press release lists $549.99, keyboard included, available now. In Japan, pricing is open and release is set for November 7, 2026. European pricing has not been announced. Official page: n/vision on roland.com.
What it competes with. The n/vision joins larger, pricier wavetable synths such as the ASM Hydrasynth or the Korg modwave, which offer more tables, deeper modulation and a screen to edit them. The n/vision goes the other way: fewer options, direct access, battery power. To place wavetable instruments among other engine types, see our guide to analog, digital and hybrid synths; for what voice count changes when you play, our article on polyphonic, paraphonic and monophonic synths.
